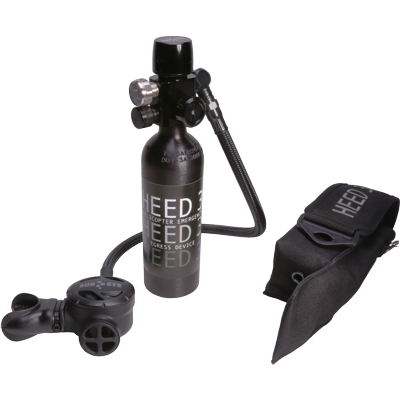

HEED 3 - 200 Series
Click for downloadable
User Instructions and Quick Reference Guide
HEED 3 can be equipped with an optional 959 Nose Clip with Lanyard Combo
- Flexible braided hose increases the versatility of HEED 3
- Refillable from an air compressor (or SCUBA tank using optional adapter)
- Deluxe Dial Gauge Pressure Indicator standard on every unit
- Sewn hose pouch protects the hose and keeps the system compact and out of way, but allows quick access
- Can be equipped with optional Nose Clip on a Lanyard
Specifications
Part Number:
200-003 (with Holster)
200-004 (without Holster)
200-004 (without Holster)
Cylinder Capacity:
2 cu ft / 58 liters
Service Pressure:
3000 psi / 207 bar
Length:
9.75" / 25 cm
Diameter:
2.25" / 5.7 cm
Weight:
1.99 lb. / .9 kg
Cylinder Material:
Aluminum - Black Anodized
Regulator Type:
Piston, downstream demand valve, 20" or 27" flexible braided hose
Pressure Relief:
Integrated in regulator
Operational Temperature:
-22°F / -30°C < +158°F / +70°C
Duration of Air:
38 breaths
*Based on 1.5 liters per breath

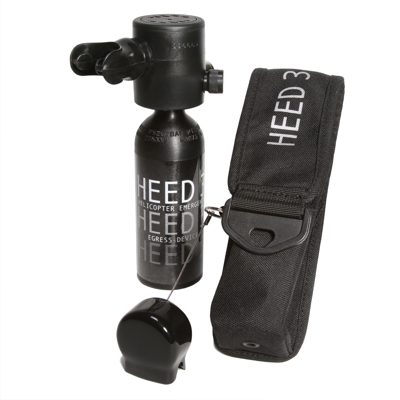

HEED 3 - 175 Series
HEED 3's proven design is the preferred choice!
Click for downloadable
User Instructions and Quick Reference Guide
HEED 3 can be equipped with an optional 959 Nose Clip with Lanyard Combo
- In Stock for quick delivery! (most quantities)
- More than 1lb lighter than competing models
- Under 9.5" tall, the HEED 3 is the smallest emergency breathing device on the market
- Affordable - the HEED 3 is over $100 less than competitors models
- Simple design is easy to repair and maintain
- Always-on design is ready to deliver air when you need it
- Refillable from an air compressor (or SCUBA tank using optional adapter)
- Deluxe Dial Gauge Pressure Indicator standard on every unit
- CE approved - Tanks on units shipped to Europe are CE approved to meet current European Safety Standards required for all compressed gas cylinders and are properly CE marked
- Made in the USA
- Can be equipped with optional Nose Clip on a Lanyard
Specifications
Part Number:
175-001 with Holster
175-002 without Holster
175-002 without Holster
Cylinder Capacity:
2 cu ft / 58 liters
Service Pressure:
3000 psi / 207 bar
Length:
9.5" / 24 cm
Diameter:
2.25" / 5.7 cm
Weight:
1.5 lb. / .7 kg
Cylinder Material:
Aluminum - Black Anodized
Regulator Type:
Single Stage
Pressure Relief:
Integrated in regulator
Operational Temperature:
-22°F / -30°C < +158°F / +70°C
Duration of Air:
38 breaths*
*Based on 1.5 liters per breath

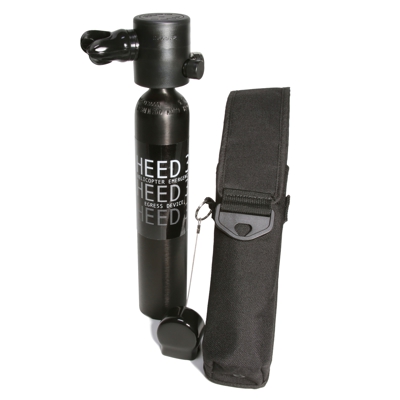

HEED 3 - 300 Series
Based upon the most popular Spare Air®, the larger cylinder provides extra air.
Click for downloadable
User Instructions and Quick Reference Guide
HEED 3 can be equipped with an optional 959 Nose Clip with Lanyard Combo
- Affordable - the HEED 3 is over $100 less than competitors models
- Simple design is easy to repair and maintain
- Always-on design is ready to deliver air when you need it
- Refillable from an air compressor (or SCUBA tank using optional adapter)
- Deluxe Dial Gauge Pressure Indicator standard on every unit
- CE approved - Tanks on units shipped to Europe are CE approved to meet current European Safety Standards required for all compressed gas cylinders and are properly CE marked.
- Made in the USA
- Can be equipped with optional Nose Clip on a Lanyard
Specifications
Part Number:
300-001 (with Holster)
300-002 (without Holster)
300-002 (without Holster)
Cylinder Capacity:
3 cu ft / 85 liters
Service Pressure:
3000 psi / 207 bar
Length:
13.4" / 34 cm
Diameter:
2.25" / 5.7 cm
Weight:
2.2 lb. / 1kg
Cylinder Material:
Aluminum - Black Anodized
Regulator Type:
Single Stage
Pressure Relief:
Integrated in regulator
Operational Temperature:
-22°F / -30°C < +158°F / +70°C
Duration of Air:
57 breaths*
*Based on 1.5 liters per breath
